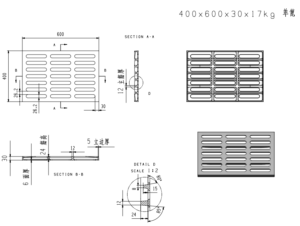

single grates 400×600

Categories: ,

Contact Now

Ductile Iron Grating EN124 B125/C250/F900

Product Code Length mm Width mm Total Depth BS EN124 CLASS
600×400-B125 600mm 400mm 35mm EN124 B125
700×400-B125 700mm 400mm 35mm EN124 B125
500×400-C250 500mm 400mm 35mm EN124 C250
520×450-C250 520mm 450mm 30mm EN124 C250
450×250-C250 450mm 250mm 35mm EN124 C250
750×450-C250 750mm 450mm 45mm EN124 C250
750×450-C250 750mm 450mm 30mm EN124 C250
600×500-F900 600mm Φ500mm 45mm EN124 F900

FEATURES:

  • Made from spheroidal graphite ductile cast iron, according to ISO 1083 (Type QT500-7) and Compliant with the European standard UNE EN-124and ISO9001:2015
  • Hinged Type
  • Anti-Skid Checker design
  • Manufactured as per BS EN 124
  • Ductile Iron for high strength and low weight
  • Black Bitumen Coated
  • Made in China
